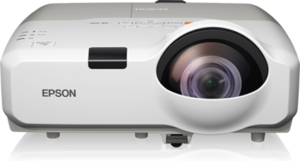

PowerLite 430 XGA 3LCD Projector

Zoom In
PowerLite 430 XGA 3LCD Projector
PowerLite 430 XGA 3LCD Projector

Ultra Bright Short-throw Projector with Advanced Connectivity

Captivate any classroom or conference room with ultra bright images from the PowerLite 430, a powerful short-throw projector that is ideal for wall-mount installations or use with interactive whiteboards. This short-throw projector minimizes shadow interference and glare, to ensure optimum viewing of your presentations. Project an 80" image from just 2.9 feet away. Get bright, vivid images with 3000 lumens of color brightness (color light output)1 and 3000 lumens of white brightness (white light output)1. The PowerLite 430 is equipped with a microphone input and a premium 16W speaker to enhance any lesson with clear, powerful audio. HDMI connectivity and advanced networking capabilities offer even more flexibility for teaching scenarios today and in the future.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1024 x 768 (XGA)
      Color Brightness: 3000 lumens1
      White Brightness: 3000 lumens1
      Throw Distance Calculator
  • Model: V11H469020
Find Accessories Support
REPLACEMENT PRODUCT :
PowerLite 530 XGA 3LCD Projector
PowerLite 530 XGA 3LCD Projector
Model: View Main Product Page Learn More
Bright and Colorful
Features 3000 lumens of color brightness (color light output)1 and 3000 lumens of white brightness (white light output)1.
XGA Resolution
1024 x 768 resolution
Short-Throw Projector
Can be mounted only 36" away from the board, for a projected image as large as 87" diagonal – with no shadow interference.
Present over a Network
Project over a network, for multi-room presentations or to show digital signage.
Optional Wireless Connectivity
Can be used wirelessly with optional high-speed LAN module (purchased separately).
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable

Up to 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*

One measurement of brightness is not enough — look for both high color brightness and high white brightness. The PowerLite 430 has:
Color Brightness: 3000 lumens1
White Brightness: 3000 lumens1

Large, engaging presentations, even in small spaces — short throw distance saves space; project a 80" image from just 2.9 feet away

Reduced shadows and glare — ideal for use with interactive whiteboards

Versatile connectivity for the classroom — HDMI, computer / VGA inputs, audio inputs, USB, audio out, monitor out and RS-232c

Powerful sound and communication features, no added cost — built-in 16W speaker, microphone input and closed captioning decoder

Remote monitoring / control or projecting content over the network — RJ-45 LAN with included EasyMP software

Simple, cost-effective installation — optional short-throw wall mount for flexible installation

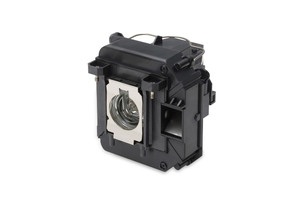

Energy-efficient E-TORL® lamp — lasts up to 6000 hours2

Broadcast your message — advertise events or broadcast instructions to all networked Epson projectors3

Fast wireless connectivity — via the optional wireless module with either the included EasyMP software (Mac and PC) or optional Quick Wireless Connection USB key (PC only)

Virtual projector remote control on your computer — controls networked projectors via a web browser

3-in-1 USB Plug 'n Play — instantly display your presentation, transmit audio, and use your remote control as a mouse to control your presentation

Enhance classroom lessons — connect your 430 directly to the Epson DC-06 document camera via USB; no computer required

PC-free slideshows — via a USB flash drive (supports JPEG, PNG, GIF and BMP file formats)

Easy setup / positioning flexibility — adjust your presentation to suit your space and audience with the 1.35x digital zoom, Quick Corner and horizontal / vertical keystone correction

Built-in teaching aids — pre-set and customizable templates to project lines, grids, or a frequently used image

High density filter — 8x the surface area of previous filters for even more protection against dust; long filter cleaning cycle up to 5000 hours4



IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson PowerLite 430 projector
  • Lens cover
  • Power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • User manual CD
  • Projector software CD
  • Quick Setup Sheet
  • Password protection sticker

Specifications Projector:

Projection System: 3LCD TechnologyResolution: XGA, 1024 x 768, 4:3Resize: 36 to 108 inchesLamp Type: E-TORL, 230W, 6000H (low brightness), 5000H (high brightness)Throw Ratio Range: 0.55:1Keystone Correction: Manual vertical: ± 15 °, Manual horizontal ± 15 °Contrast Ratio: 00:01

General:

Dimensions: 345 x 277 x 105 mm (width x depth x height)Weight: 3.9 kgSecurity: Kensington protection, security bar, field of operation lock, password protection

Projection Lens:

Zoom Ratio: Digital zoom factor: 1.35x

Connectivity Projector:

Standard Connectivity: USB 2.0 Type B, USB 2.0 Type A, RS-232, Ethernet interface (100 Base-TX/10 Base-T), WLAN (optional) VGA input (2x), VGA output, HDMI input, screen port, composite input, component input (2x), S-Video input, Audio output,Stereo mini-jack, Stereo mini-jack (2x), Audio input, Cinch audio input,

Projector Details:

Color Modes: Blackboard and whiteboard, Photo, Presentation, Sports,sRGB, TheaterSpeaker: 16 WattsSpecial Features: Document camera compatible, image freeze, Instant ON/OFF, JPEG Visor, AV mute, network administration, Network Image Transmission, QuickCornerFan Noise: Normal: 37 dB (A) - Eco-mode: 29 dB (A)

Projector Dimensions:

Including feet: 345 x 277 x 105 mm (width x depth x height)

Power:

Power Consumption: 332 W, 24 W (eco)
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 Message Broadcasting works only with Epson projectors that support presentation over the network capability.

4 Recommendation based on normal room conditions. Cleaning requirements may vary depending on use, environment and other conditions. Cleaning intervals may be adjusted to accommodate the environment in which the projector is used.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson projectors have up to 3x Brighter Colors than their leading competitive 1-chip DLP business and education projectors. Competitive projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
